Description
T8 LED Glass tube
Application: industrial lighting, commercial lighting, office lighting.
Product features:
Products through the Ce certification pipe using glass tube, free of mercury and other harmful metals, green pollution-free beam, good safety; Excellent thermal stability, and the glass tube 360 degrees are in contact with air, heat distribution is uniform. Long time light will not turn yellow, more resistant to pollution and corrosion, more durable. Through 4000V high voltage test and 1000V surge test, it can prevent lightning strike and leakage, effectively avoiding the influence of power grid fluctuation and lightning strike; Keep people safe.
Model | Power | Luminous flux | Color temperature | CRI | Size | life |
CX-T8-LED9W | 9W | 900lm | 3500K-6500K | Ra>80 | 600mm | 25000H |
CX-T8-LED15W | 15W | 1500lm | 3500K-6500K | Ra>80 | 900mm | 25000H |
CX-T8-LED18W | 18W | 1800lm | 3500K-6500K | Ra>80 | 1200mm | 25000H |
CX-T8-LED24W | 24W | 2400lm | 3500K-6500K | Ra>80 | 1500mm | 25000H |
CX-T8-LED8W-N | 8W | 900lm | 3500K-6500K | Ra>80 | 600mm | 30000H |
CX-T8-LED18W-N | 18W | 2100lm | 3500K-6500K | Ra>80 | 1200mm | 30000H |
CX-T8-LED8W-S | 8W | 1250lm | 3500K-6500K | Ra>80 | 600mm | 50000H |
CX-T8-LED16W-S | 16W | 2500lm | 3500K-6500K | Ra>80 | 1200mm | 50000H |
T5 LED Glass tube
Applications: industrial lighting, commercial lighting, office lighting.
Product features:
T5 LED glass lamp has the following advantages: powder coated glass tube suite, high transmittance 300 large beam angle 2: long life design, usually using 50000 hours 3: high power and high light efficiency design, can replace TLD T5 lamp tube illumination equivalent to 4: full voltage, suitable for global 5:t5 standard suite, weight and size in line with international standards.
Single voltage:220V~240V
Model | Power | Luminous flux | Color temperature | CRI | Size | Rated life |
CX-T5-GYU-9W | 9W | 900lm | 3500K-6500K | Ra>80 | 16*563mm | 30000H~50000H |
CX-T5-GYU-16W | 16W | 1600lm | 3500K-6500K | Ra>80 | 16*1163mm | 30000H~50000H |
CX-T5-GYU-18W | 18W | 2100lm | 3500K-6500K | Ra>80 | 16*1163mm | 30000H~50000H |
Wide voltage:85V~277V
Model | Power | Luminous flux | Color temperature | CRI | Size | Rated life |
CX-T5-GYW-9W | 9W | 110/130/150lm/w | 3500K-6500K | Ra>80 | 16*563mm | 30000H~50000H |
CX-T5-GYW-17W | 17W | 110/130/150lm/w | 3500K-6500K | Ra>80 | 16*1163mm | 30000H~50000H |
CX-T5-GYW-22W | 22W | 110/130/150lm/w | 3500K-6500K | Ra>80 | 16*1163mm | 30000H~50000H |

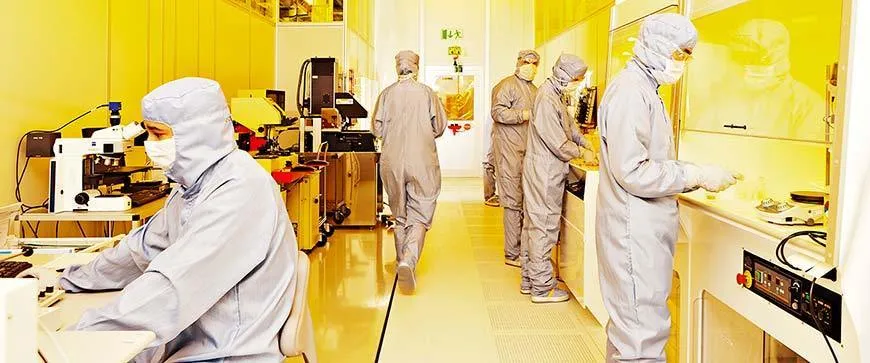

PCB factory printing plant, microelectronics, factories, etc by lithography and chemical etching of etching method, will be small printed circuit on specific base version, etching using glue to below 500 nm uv or visible light sensitive, if using ultraviolet light lamp lighting, the result is tiny circuit pCB etching edge blur, thus seriously reduce the quality of the pCB or brush printing plate making quality. Anti-uv yellow light safety lamp tube is specially designed for pCB and other industries with special lighting requirements. The unique coating is used to eliminate 100% ultraviolet radiation (the radiation energy in the ultraviolet region below 500nm is zero). The product is made of high-quality aluminum to dissipate heat, which has a long service life, is not easy to damage and will not pollute the workshop environment.
Model | Power | Luminous flux | Anti UV rate | CRI | Size | Life |
CX-T8-18W-BGKUV | 18W | 1600lm | 500nm | Ra>80 | 1200mm | 30000H~50000H |
CX-T8-20W-BGKUV | 20W | 1800lm | 500nm | Ra>80 | 1200mm | 30000H~50000H |
CX-T5-16W-BGKUV | 16W | 1400lm | 500nm | Ra>80 | 1149mm | 30000H~50000H |
CX-T5-18W-BGKUV | 18W | 1600lm | 500nm | Ra>80 | 1149mm | 30000H~50000H |
PCB factory printing plant, microelectronics, factories, etc by lithography and chemical etching of etching method, will be small printed circuit on specific base version, etching using glue to below 500 nm uv or visible light sensitive, if using ultraviolet light lamp lighting, the result is tiny circuit pCB etching edge blur, thus seriously reduce the quality of the pCB or brush printing plate making quality. Anti-uv yellow light safety lamp tube is specially designed for pCB and other industries with special lighting requirements. The unique coating is used to eliminate 100% ultraviolet radiation (the radiation energy in the ultraviolet region below 500nm is zero). The product is made of high-quality aluminum to dissipate heat, which has a long service life, is not easy to damage and will not pollute the workshop environment.
Model | Power | Luminous flux | Anti UV rate | CRI | Size | Life |
CX-T8-9W-KUV | 9W | 800lm | 500nm | Ra>80 | 1200mm | 30000H~50000H |
CX-T8-18W-KUV | 18W | 1600lm | 500nm | Ra>80 | 1200mm | 30000H~50000H |
CX-T8-20W-KUV | 20W | 1800lm | 500nm | Ra>80 | 1149mm | 30000H~50000H |
Q1: Are you a factory or trading company?
A1:We are a factory,And we can according to clients request to design and produce.
Q2: What is the Warranty for the led light?
A2: For the led light, we have 2 years warranty. And some special offer with 3 or 5 years warranty as customers request.
Q3: What is CRI?
A3:CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. For LED lights, the CRI is higher than 80. For the outdoor light, the CRI higher than 70 is OK at most of applications.
Q4: Is there cheap shipping cost to import to our country?
A4: For small order, express will be best. And for bulk order, sea ship way is best but take much time.For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q5: How do you offer samples?
A5: We offer free samples in certain quantity with shipping cost paid by the clients
Q6: Can your factory make the lights based on customers’ design?
A6:Yes, we offer OEM and ODM service, we have professional engineers for R&D.
Q7: Could you offer OEM led light?
A7: Yes, we offer OEM led light, the OEM led light could offer your laber and your color box.
Q8: What is your delivery time?
A8:Sample order: 3-7 working days
Mass order: 25-30 days after 30% deposit received
Q9: What is your payment terms?
A9:Payment shall be 50% deposit by TT, balance against copy of TT,or L/C at sight.
