180 Degree Big View Angle High Bright 24V 528LED Flexible COB LED Strip Without Light DOT

Input Voltage(V)
DC12V/24V

CRI (Ra>)
90

Product Name
COB Strip Light 480LED IP20 Waterproof 12V 24V Fle

LED Light Source
480eds/M COB LED

PCB Width
8mm

Beam Angle
180 Degree

Lamp Power
10W

Standard Packing
5meter/Roll

Lamp Body Material
FPC

Color Temperature
3000K/4000K/6000K

Support Dimmer
Yes

Certifications
CE RoHS

Lighting Solutions Service
Lighting and Circuitry Design

Lifespan (Hours)
30000

Transport Package
Master Carton Box

Specification
45x45x35cm

Trademark
To be customized

Origin
China

HS Code
76042990

Description

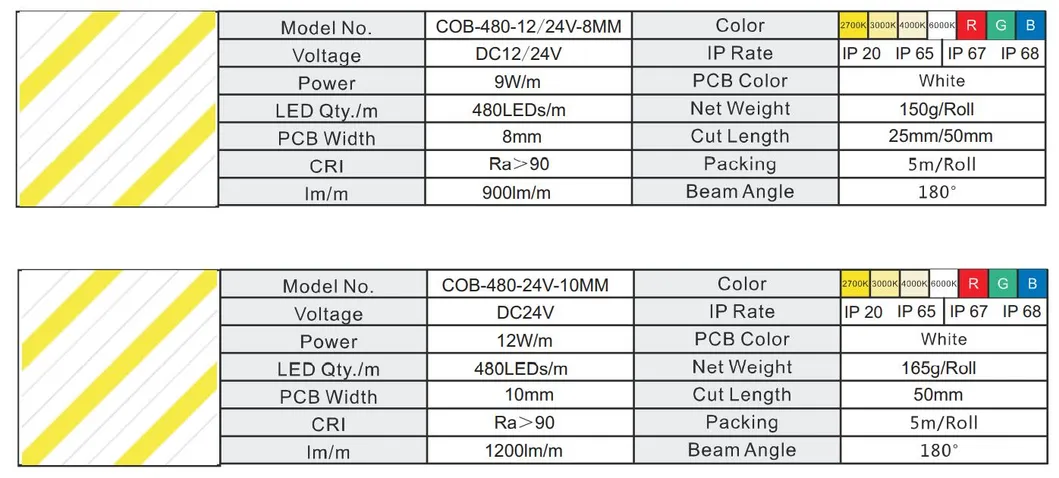

Specification
Product Name
DC12V 24V DC 3mm 4mm 5mm 6mm 8mm 10mm high density no light spot dotless COB led extremely flexible strips 180 degree view
Color Temperature(CCT)
Nature white(4000K), Warm white(3000K), Cool white(6000K)
Lamp Luminous Efficiency(lm/w)
80-110lm/W
Color Rendering Index(Ra)
Ra>90
Input Voltage(V)
DC12V/24V
Lamp Power
9-12w/m
Lamp Luminous Flux(lm)
1000-1100
Working Temperature(ºC)
-20 – 45
Lamp Body Material
Copper
Certification
CE, RoHS
Model Number
COB Led Flexible Strip
Light Source
LED
Warranty(Year)
5-Year
IP Rating
Ip20
Product Name
480LEDs/M COB Flexible Strip
Total length
3.2ft/1m,16.4ft/5m
LED quantity
480 LEDs/m
View angle
180°
Waterproof level
IP20 Non-waterproof
FPCB width
8mm, 10mm
Type
Density leds
Package
5meter/roll
Product Description






Certifications


Packing & Delivery
Packaging: 5meters/roll

1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover. 2. Continuous and uniform linear illumination, with soft and elegant light, no glare. 3. Adopt Flip-Chip technology, no dead light risk.  4. Single point’s current is small, which provides good heat dispersion, long life span and low luminous decay. 5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.  6. Suitable for furniture, KBB market or any corner application. 7. It’s your new best choice for Lighting Market.
