Description
Glare-LED outdoor DIP lamp LED display has waterproof and dustproof, good heat dispersing performance, and does not affect the distance between pixels and color mixing effect, ultra wide angle design. it has the characteristics of low power consumption, easy maintenance, high pixel density and soon. at the same time a single color, double color, full color optional, the display of fine and clear, bright color, high brightness, can play a variety of text images video and play TV news live broadcast, etc.
| Product Type | Item. | Technical Data and Parameter | |||||||||
| LEDS | Density (dots/m2) | Modules pixels (W*H/dot) | Modules size W*H(mm) | LED lamp config | Scan mode | Driving mode | Brightness (cd/m2) | Module power (w) | Ave. power w/m² | ||
| Outdoor DIP Single Color and Tri-color LED Display | P16 | 347 | 3906 | 8*16 | 128*256 | 2R | static | constant current | ≥5000 | 4 | 125 |
| P16 | 347 | 3906 | 8*16 | 256*256 | 2R1G | static | constant current | ≥8000 | 6 | 185 | |
| Outdoor DIP full color LED Display | P16 | 347 | 3906 | 8*16 | 256*256 | 1R1G1B | static | constant current | ≥8000 | 10 | 305 |
Product Features
Good performance in high current, continuously exceed the limit of LED capability
P10, P16 modules use16*16 dots big module design solution, connectors are less, consistency is better, products performance are moren outstanding.
The power cables with the special dedicated winding tube, it looks beautiful, wiring more standardized, Product stability is stronger.

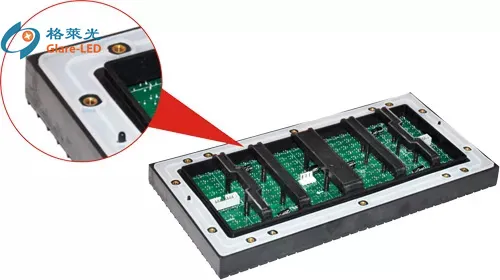

The modules are designed with Wide waterproof apron for strict use environment of outdoor products.
The power cables with the special dedicated winding tube, it looks beautiful, wiring more standardized, Product stability is stronger.
Waterproof
Use cabinet design
Cabinet has a variety of colors
